AS-84F HF 6m Antenna Switch 8 Ant. x 4 Radios

AS-84F HF 6m Antenna Switch 8 Ant. x 4 Radios

Additional information

Additional information

Weight	3.6 kg
Dimensions	40 × 36 × 6 cm

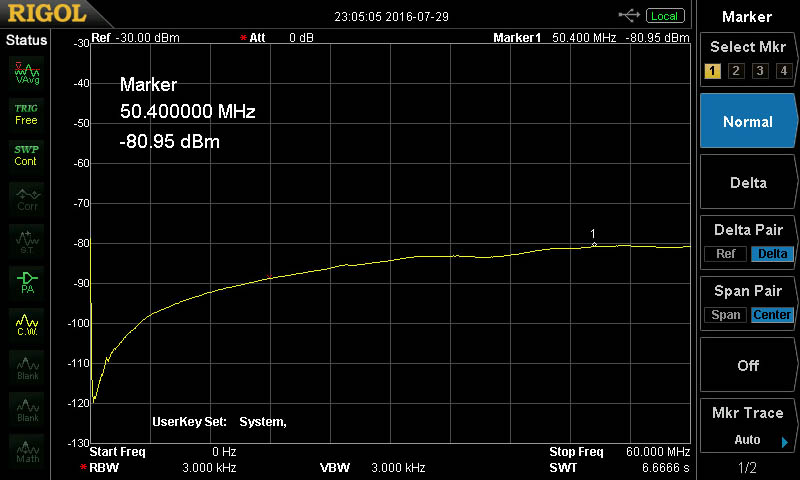

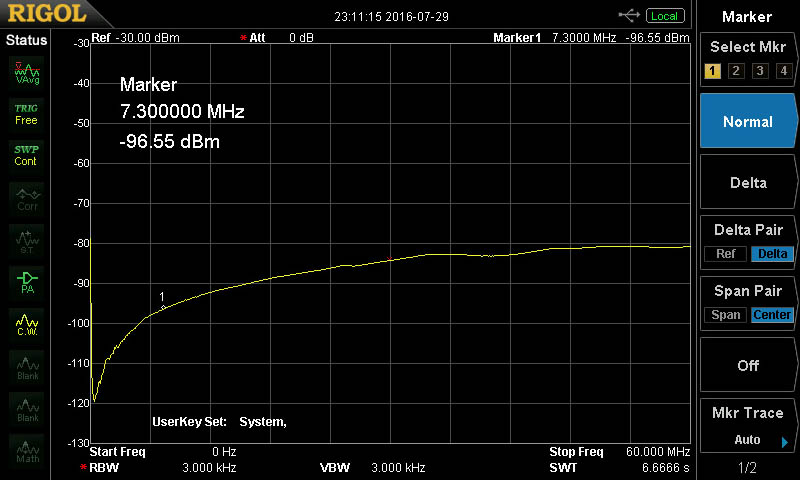

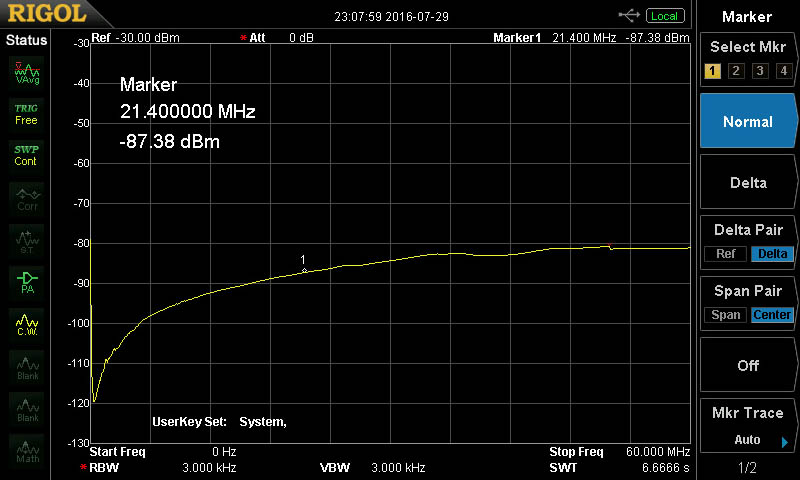

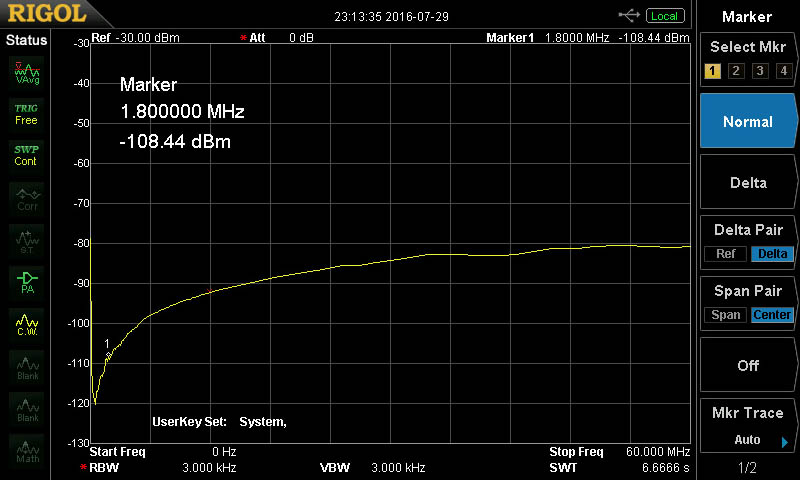

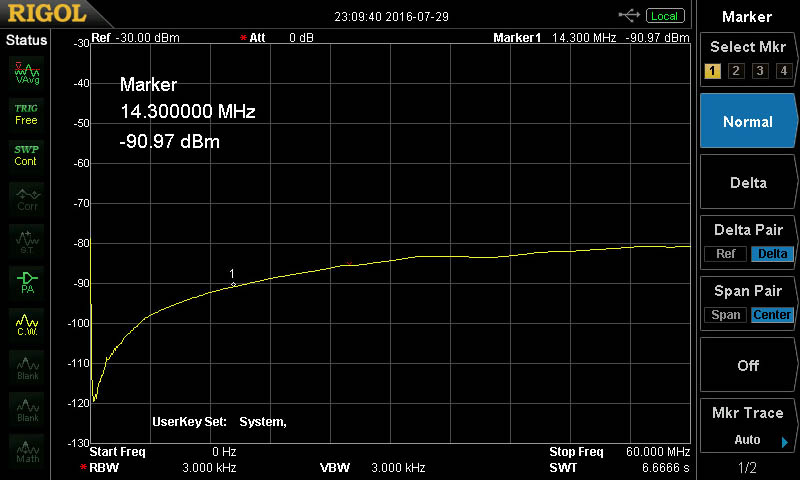

Port Isolation worst conditions measurements:

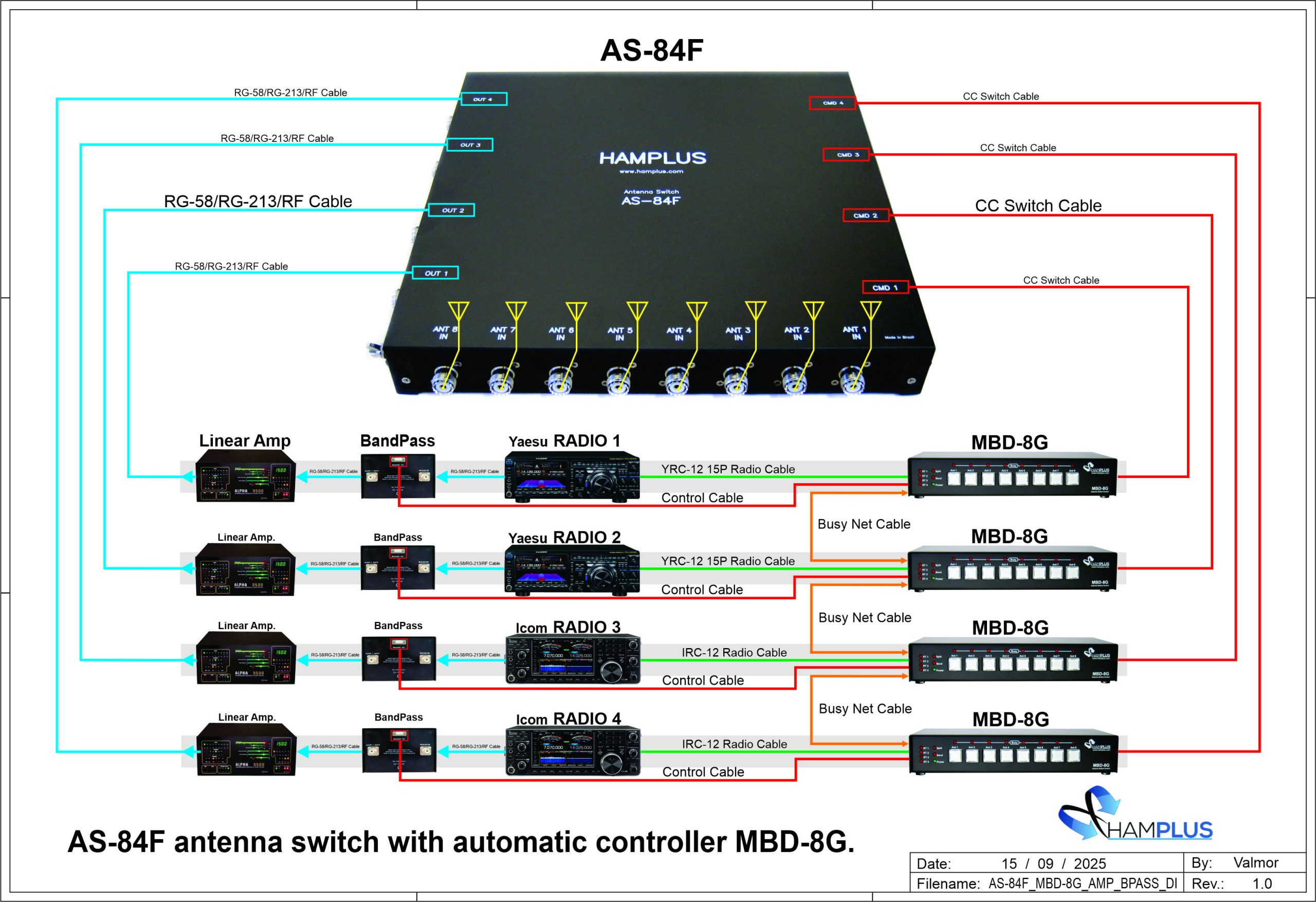

Automatic/manual operation we suggest using four MBD-8G controllers

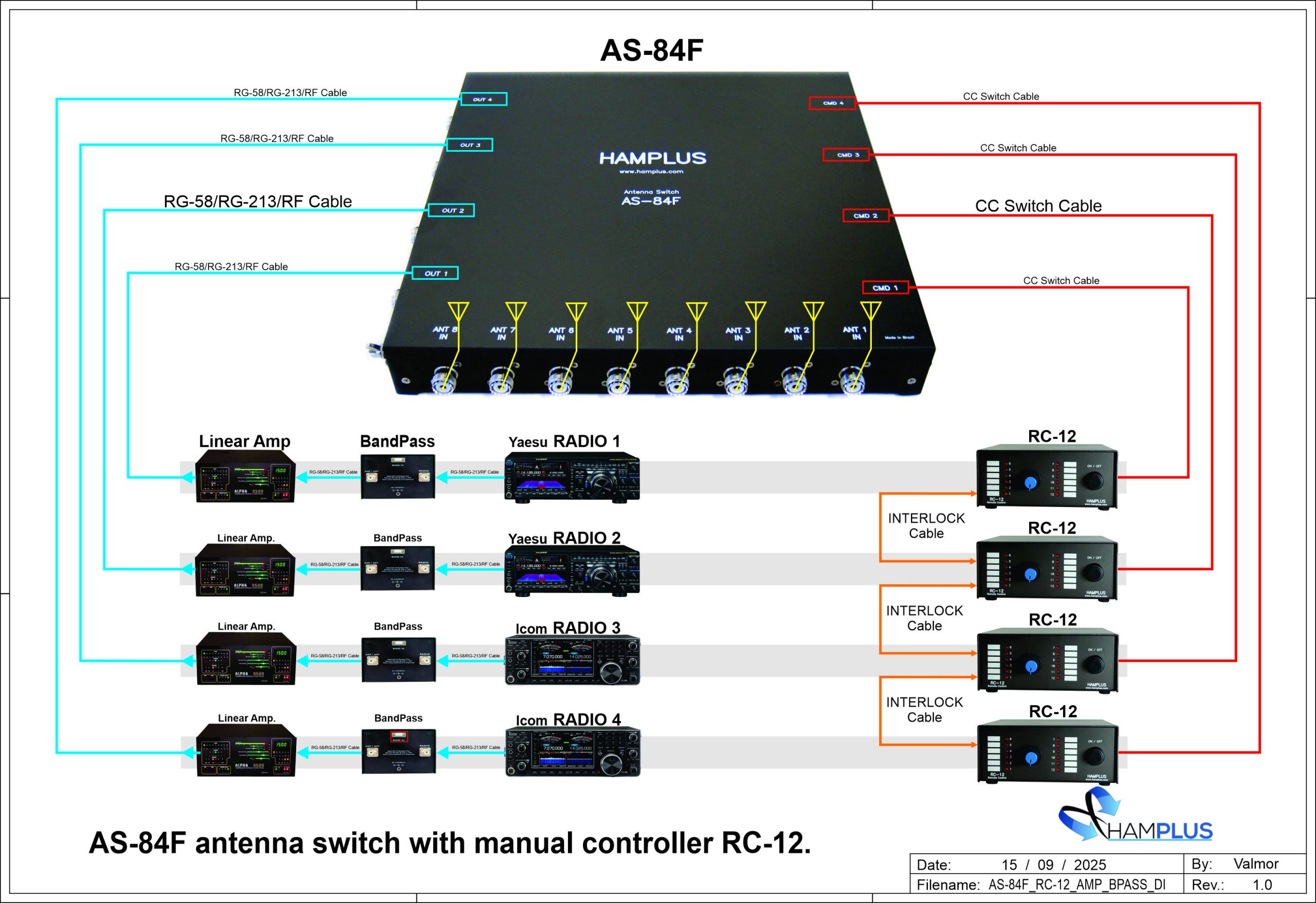

Manual operation only you can use four RC-12 controllers
Specification:

Size:	Width 35,5cm – Height 5cm – Deep 33cm
Power Supply:	D.C. 14 Volts + or – 20% drain about 200mA
Max. SSB power allowed:	5000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:	D.C. to 54 MHz
Time delay to switch:	Equal or less than 12 ms
Insertion loss:	Equal or less than 0,2dB
Internal Antenna Termination:	Seletable in 0 or 50 Homs

No data was found

Category: Antenna Switches, Relay Antenna Switches

$1,165.00

In stock

Antenna switch with 8 inputs by 4 output remotely controlled.

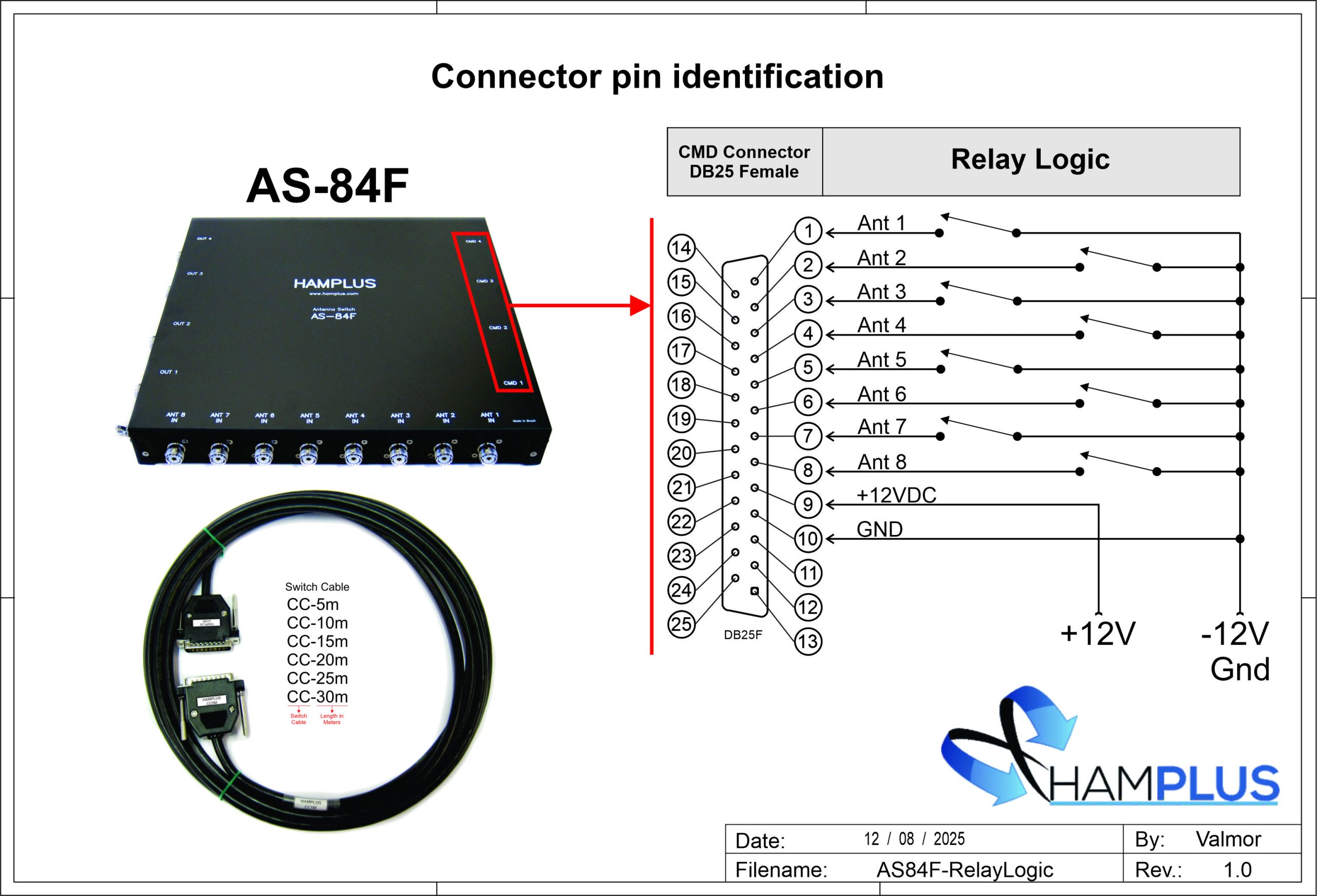

Aluminum cabinet painted in the dark gray color, having UHF type (SO-239) or N Connector for the R.F connections and DB-25 for remote control.
All antenna inputs are switched to ground when not in use.
When the power are switched off, all antenna inputs are routed to ground for protection purposes.

Choose Connector

N Connector

N Connector

$0.00

U Connector

U Connector

$0.00

Choose Switch Cable

Add to wish list

Reviews

Description

Automatic/manual operation we suggest using four MBD-8G controllers
Manual operation only you can use four RC-12 controllers
Specification:

Size:	Width 35,5cm – Height 5cm – Deep 33cm
Power Supply:	D.C. 14 Volts + or – 20% drain about 200mA
Max. SSB power allowed:	5000 Watts P.E.P. with S.W.R. equal or less than 1.5:1
Frequency of operation:	D.C. to 54 MHz
Time delay to switch:	Equal or less than 12 ms
Insertion loss:	Equal or less than 0,2dB
Internal Antenna Termination:	Seletable in 0 or 50 Homs

Additional information

Weight	3.6 kg
Dimensions	40 × 36 × 6 cm

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
