RS-48 Rotator Switch 4×8

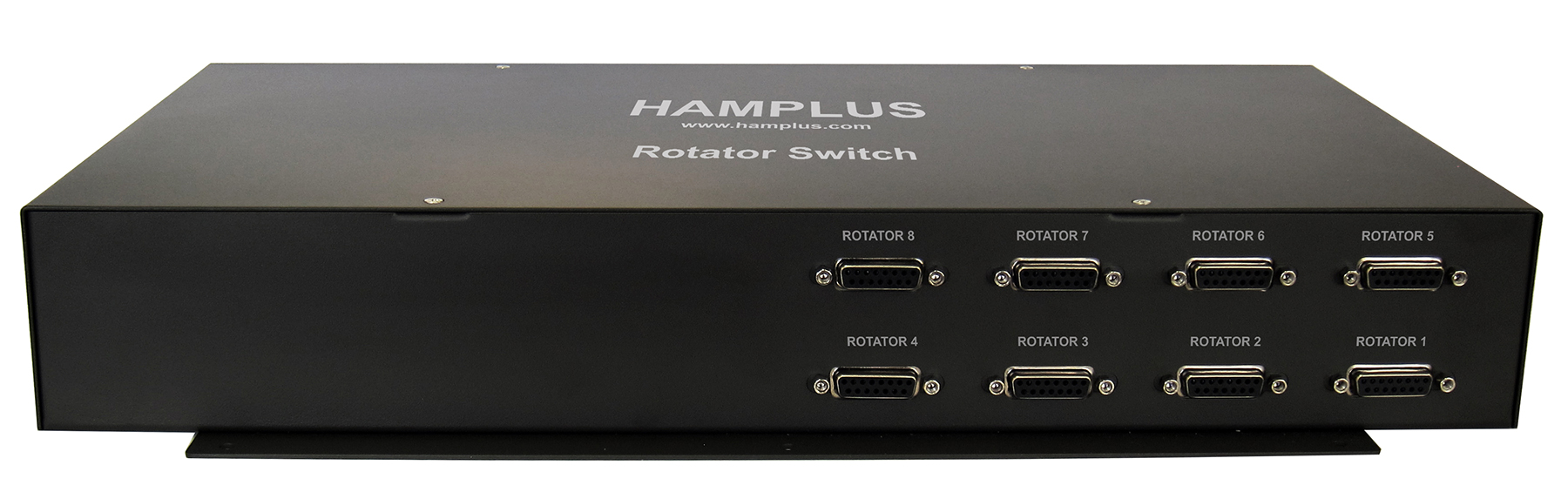

RS-48 Rotator Switch 4x8
RS-48 Rotator Switch 4x8 - Image 2
RS-48 Rotator Switch 4x8 - Image 3

Additional information

Additional information

Specifications:
Size:
 45cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
8 amp.
Switching:
 8 Wires
  On the follow drawings we are use the YAESU G2800-DXA, but can be used any rotator and controller model. Wiring diagram exemples:
Four radios and eight rotors
  Downloads: RS-48 Connectors Pin Indetification
No data was found
Category: Rotator Switches

$1,699.00

In stock

If you have more than one radio room (Shack) and/or more than one Rotator on your directional antennas, then Rotator Switch RS-48 is the solution. With it you will use only one controller on the table and it will be able to control till eight antenna rotators.The RS-48 can select between eight rotators using only one controller for each shack. The system can use till four controllers. One interlock system don’t permit connections for rotators in use on other shack. It is possible to automate all station. On systems where the Hamplus MBD-12F is installed, the rotator assigned to each antenna are called on each change. The RS-48 comutates eight wires.
Add to wish list

Reviews

Description

Specifications:

Size:
 45cm width, 7cm height and 25,5cm deep
Power suply :
 14 volts
Max. switch current:
8 amp.
Switching:
 8 Wires



On the follow drawings we are use the YAESU G2800-DXA, but can be used any rotator and controller model.
Wiring diagram exemples:

Four radios and eight rotors



Downloads: RS-48 Connectors Pin Indetification

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
